Arrange sub-menu

Arrange sub-menu

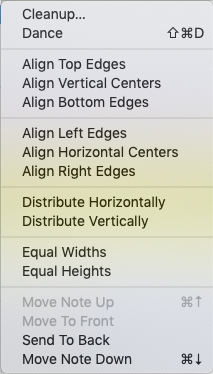

A sub-menu of the View menu. In previous versions this was menu called 'Align'. This menu has items for controlling the layout of Map (only) items:

  • Cleanup… Cleanup tab in the view pane.
  • Dance. Starts/stops a force-directed layout of a Map view. Calling this opens the Dance pop-over.
  • Align Top Edges. Align the top edges of all selected items.
  • Align Vertical Centers. Align the vertical centres of all selected items.
  • Align Bottom Edges. Align the bottom edges of all selected items.
  • Align Left Edges. Align the left edges of all selected items.
  • Align Horizontal Centers. Align the horizontal centres of all selected items.
  • Align Right Edges. Align the right edges of all selected items.
  • Distribute Horizontally. Distribute the selected items equally in the horizontal plane.
  • Distribute Vertically. Distribute the selected items equally in the vertical plane.
  • Equal Widths. Set selected items to the same width (largest in selection).
  • Equal Heights. Set selected items to the same height (largest in selection).
  • Move To First. In Map views this moves the current note in front of all other notes (i.e. first by outline order).
  • Move Note Up. In Outline views this moves the current note up one place (at sibling level).
  • Move Note Down. In Outline views this moves the current note down one place (at sibling level).
  • Move To Last. In Map views this moves the current note behind all other notes (i.e. last by outline order).
