More detail in containers & agents

Version 3.0.3 introduced an attribute InteriorScale, that allows per-note setting of factor by which notes inside a container are smaller than notes elsewhere in a map. As from v4.0.0:

• the default is 1.5. If InteriorScale is 2, then interior (child) notes are half their normal map size.
• InteriorScale is inherited via a Map Preference - Map interior scale.

This makes it easier to show detail within containers - be they notes or agents.

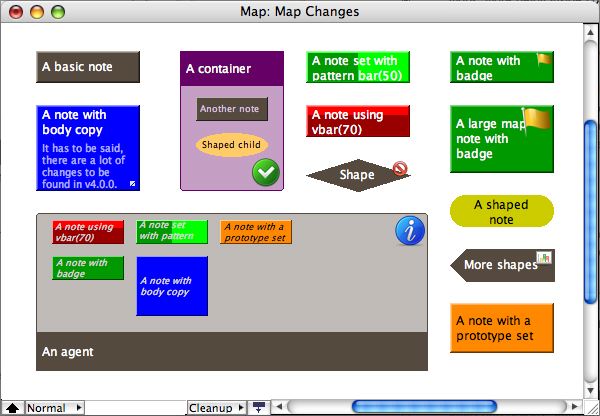

As previously, the order/location of aliases seen in an agent can't me moved but they can be seen in more detail as with a note container, as is illustrated.

Honoured in container viewport display: Shapes, Progress bar mark-up (bar/vbar).

Not honoured in container viewport display: Badges, body text.
